COMBO-QUICKSET
Easy select timer drain
The COMBO-QUICKSET timer controlled condensate drain combines an easy to program timer controlled drain, a ball valve and a mesh strainer into one compact easy to install package. Suitable for flows up to 700 CFM and pressures up to 145 PSI, the COMBO-QUICKSET is perfect for a wide range of compressed air applications, especially those with solid particulate contaminants.

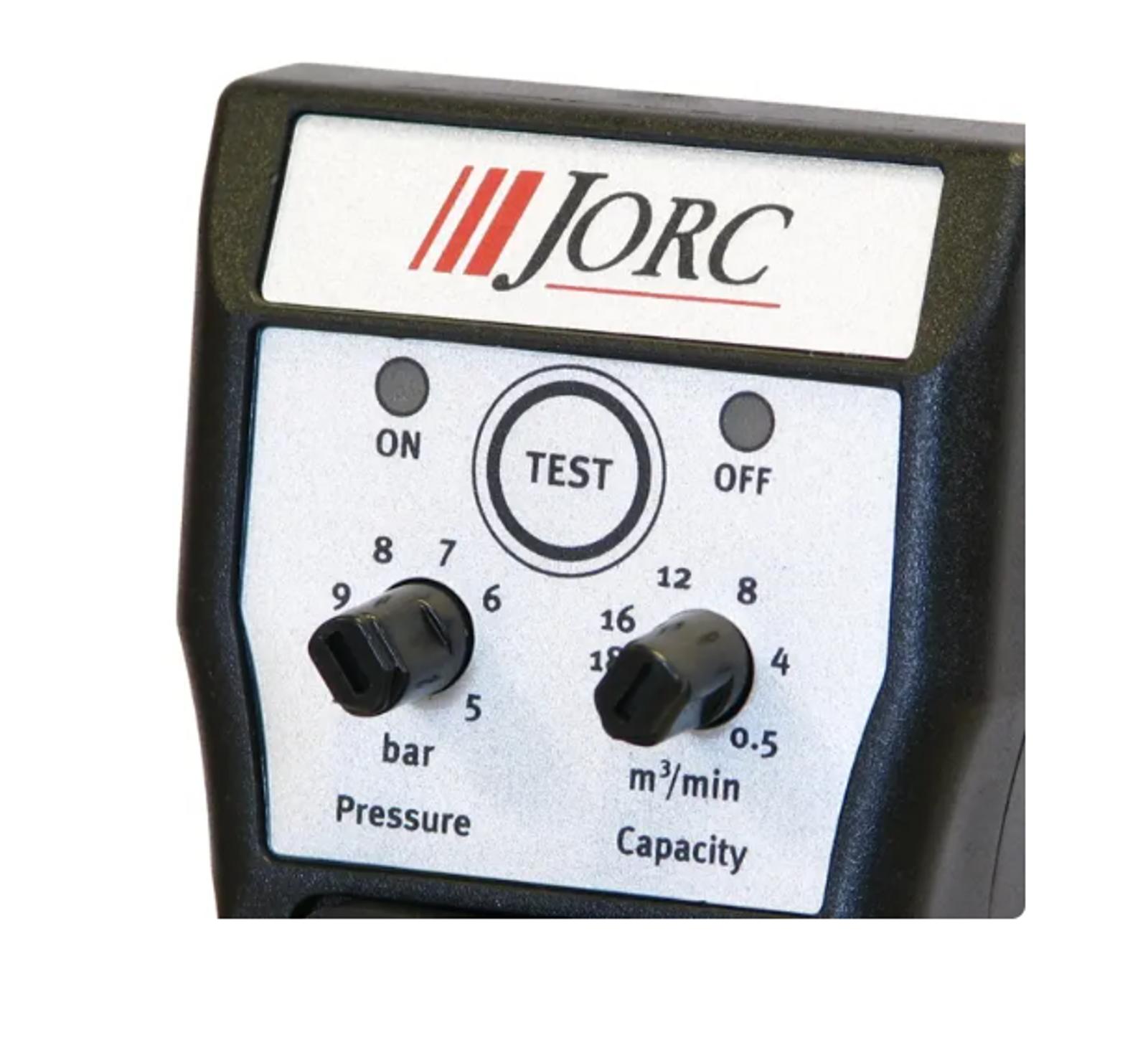

Just turn the dials to the pressure and capacity of the compressed air system and the COMBO-QUICKSET automatically adjusts the open and close timers to the proper settings. With a test button, LED on/off indication and a fully serviceable direct acting valve, the COMBO-QUICKSET offers ease to use, affordable and reliable condensate management without the need to install additional valves and strainers. Use it on compressors, receivers, filters or refrigerated air dryers.
The 115VAC version of this drain is supplied with a 6 ft. power cord with plug and the 230VAC version is supplied with a 7 ft. power cord.
Share
Quick time cycle selection, offering you simple cycle setting during installation.
Private labelling possibilities, offering you personal branding options.
The timer is available in various colours, offering you product personalisation.
- Does not air-lock during operation.
- Suitable for all types of compressors up to 700 CFM.
- TEST (micro-switch) feature.
- Private labelling possible.
- Simple to select the correct time settings.
- Medium pressure up to 145 PSI.
- Can be combined with various types of JORC solenoid valves.
| 700 CFM |
| 0 - 145 PSI (higher pressure available, see OPTIMUM-HP-S) |
| 24 - 240 VAC/DC 50/60Hz. (please indicate) |
| 34 - 131 °F |
| 34 - 131 °F |
| Simply select the compressor capacity and pressure! |
| SMD technology, ensuring consistency in production |
| Bright LED illumination |
| Yes |
| 2/2 way, direct acting |
| 4 mm |
| FPM |
| 1/4" & 1/2" (BSP or NPT) / 1/2" (BSP or NPT) |
| 0.4" |
| Yes |
| Brass (Stainless steel available, see OPTIMUM) |
| DIN 43650-A |
| NEMA4 (IP65) |
| See manual |
SERVICE KITS
Great care is taken to ensure long lasting components are selected and applied in our products.
Learn More
Features
Quick time cycle selection, offering you simple cycle setting during installation.
Private labelling possibilities, offering you personal branding options.
The timer is available in various colours, offering you product personalisation.
- Does not air-lock during operation.
- Suitable for all types of compressors up to 700 CFM.
- TEST (micro-switch) feature.
- Private labelling possible.
- Simple to select the correct time settings.
- Medium pressure up to 145 PSI.
- Can be combined with various types of JORC solenoid valves.
Specifications
| 700 CFM |
| 0 - 145 PSI (higher pressure available, see OPTIMUM-HP-S) |
| 24 - 240 VAC/DC 50/60Hz. (please indicate) |
| 34 - 131 °F |
| 34 - 131 °F |
| Simply select the compressor capacity and pressure! |
| SMD technology, ensuring consistency in production |
| Bright LED illumination |
| Yes |
| 2/2 way, direct acting |
| 4 mm |
| FPM |
| 1/4" & 1/2" (BSP or NPT) / 1/2" (BSP or NPT) |
| 0.4" |
| Yes |
| Brass (Stainless steel available, see OPTIMUM) |
| DIN 43650-A |
| NEMA4 (IP65) |
| See manual |
