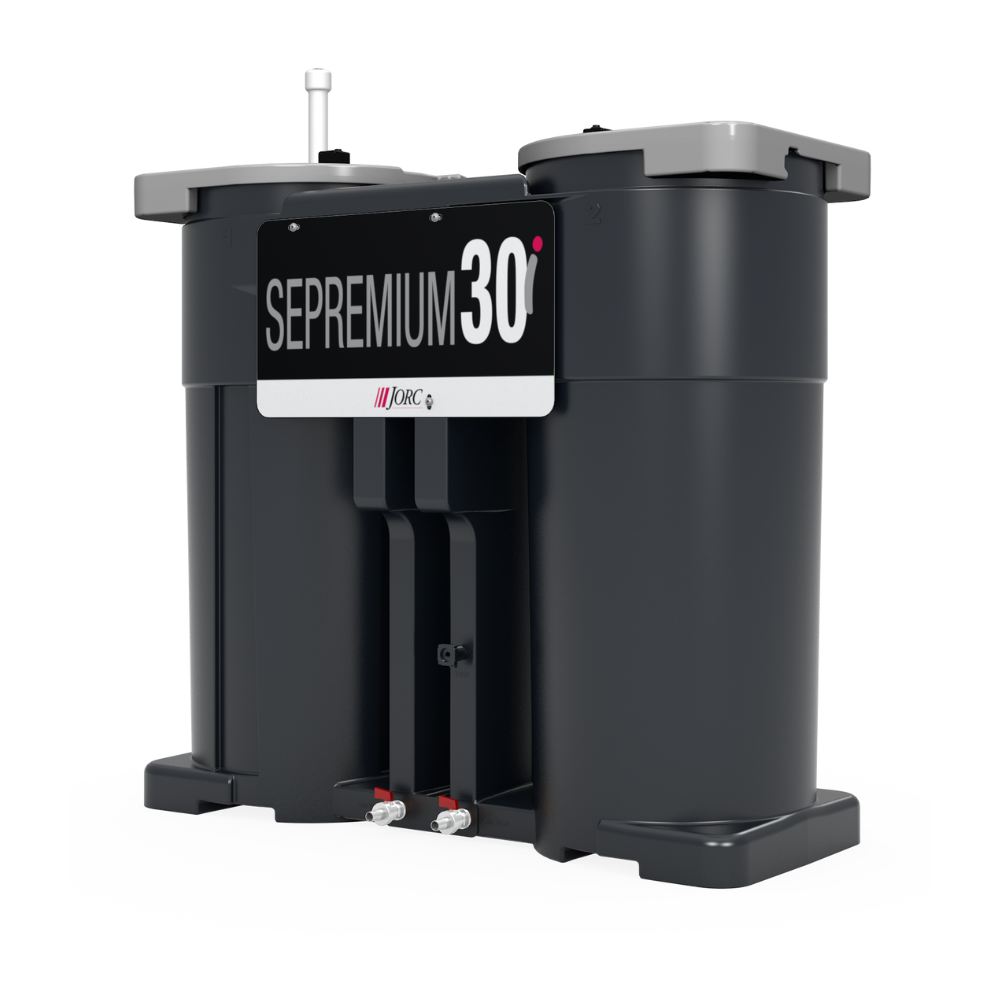

SEPREMIUM 30i Oil Water Separator
Catering to heavy-duty usage scenarios, the SEPREMIUM 30i supports compressed air flows up to 30 m³/min. This makes it an excellent choice for large-scale manufacturing plants or any facility that demands high throughput without compromising on filtration efficiency.
Like the other models in the range, it features cutting-edge adsorption technology, final-stage activated carbon polishing, and a residual oil content of less than 5 ppm.
Its ergonomic filter elements simplify maintenance, while the built-in overflow light and optional remote sensor help avert downtime. If your site handles continuous, high-capacity workflows, the SEPREMIUM 30i delivers long-lasting performance, intelligent monitoring and straightforward service.
Share
Commercial Benefits:
- Ideal choice for compressor capacities up to 30 m³/min.
- Implementation of NEW high-quality JORC green filtration element
- Effective separation of mineral oil, synthetic oil and stable condensate emulsions
- Includes an Indicator Flashing Light; Optional JORC sensor to connect to your monitoring system also available
- Service valves, offering you draining of the individual towers for routine servicing and cleaning
- Brass hose connectors ensure swift and secure installation
- Exceptional value for money
Technical Advantages:
- Maximum compressor capacity 30 m³/min. (1250 CFM)
- Visual element life indication
- Lighter and easier replacement of elements
- Sectional draining options during servicing
- Multiple condensate inlets
- Overflow indicator
- Test valve & sample bottle for output testing and measuring the ppm value (indication)
- Operates with all JORC type drains (both timer controlled and zero air loss)
- Customer specific finishing options available
- Relatively small foot print
| 30 m³/min. (1250 CFM) |
| 25 liters |
| 2 |
| 1 |
| G ½" (10 mm hose adapter) |
| G 1" (25 mm hose adapter) |
| Yes |
| <5 ppm |
| PE |
| Black |
| Grey |
| Yes |
| Included |
| Yes |
| Yes |
| On request |
| Very large |
