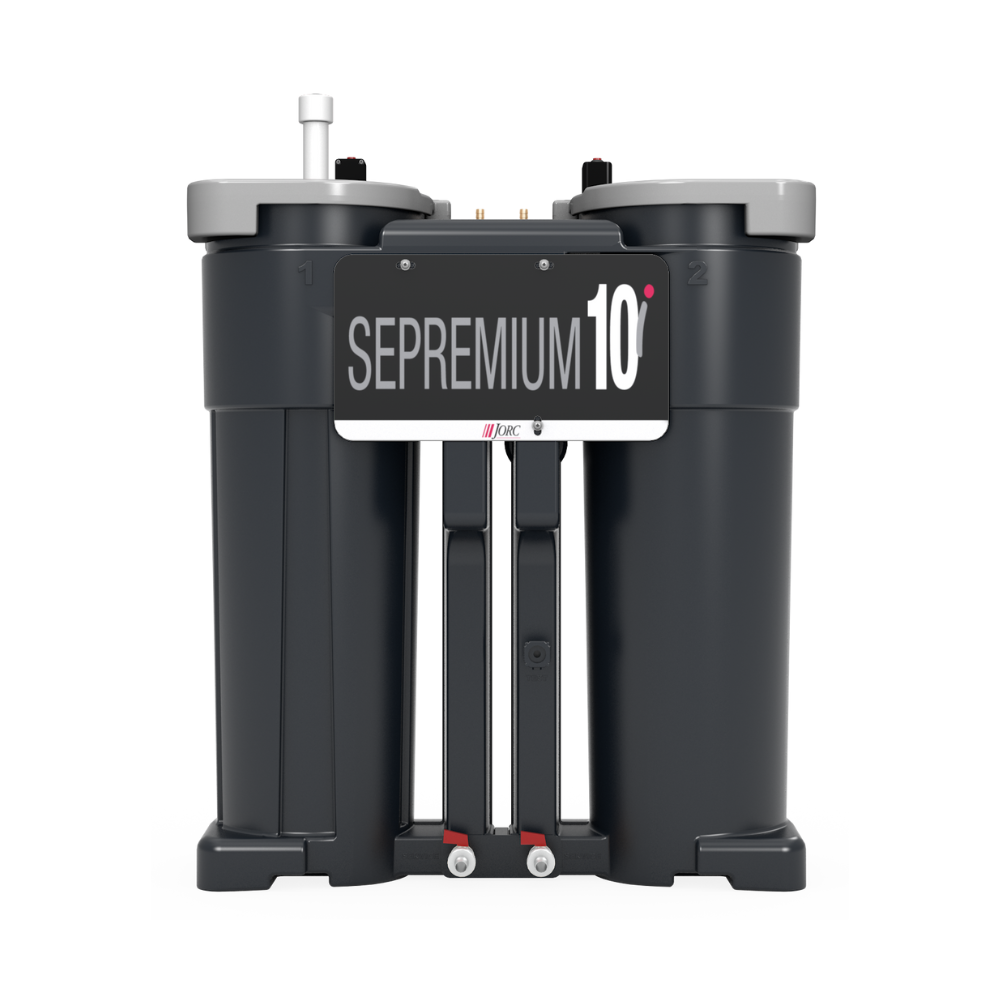

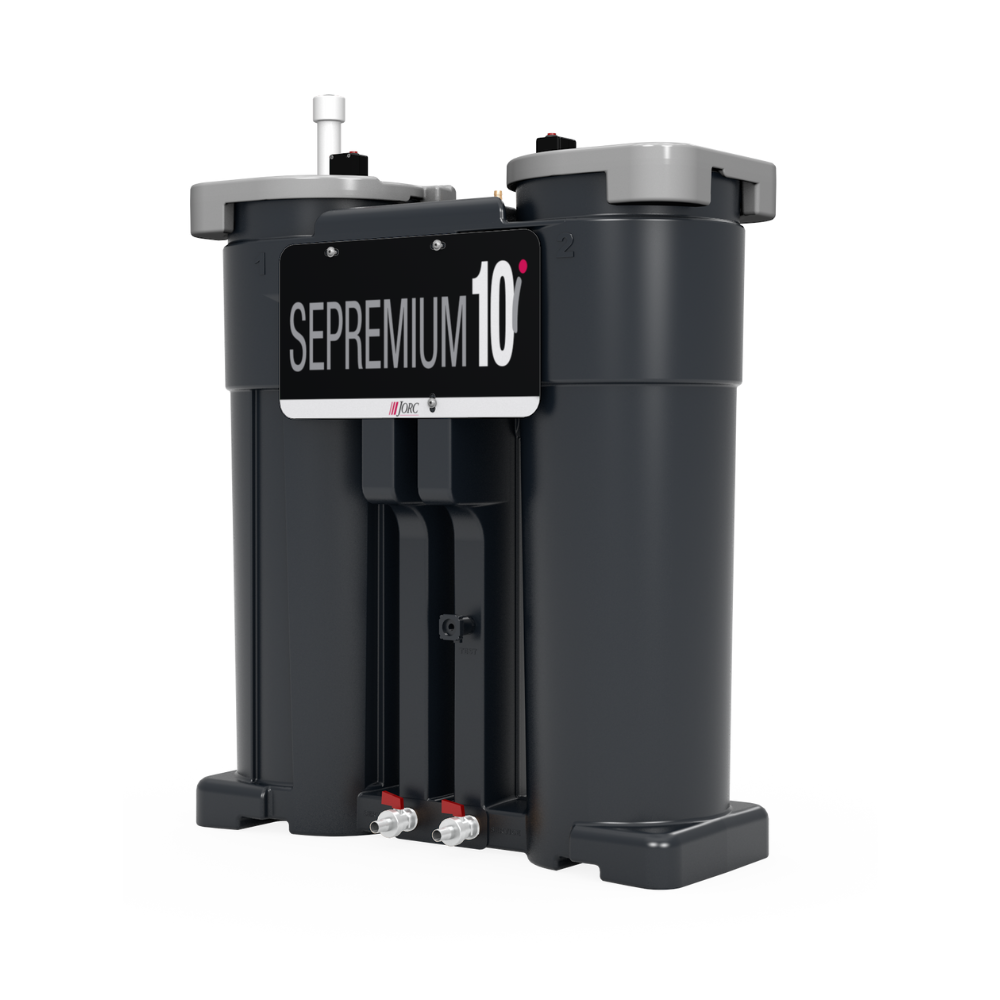

SEPREMIUM 10i Oil Water Separator
A step up in capacity, the SEPREMIUM 10i handles up to 10 m³/min, making it a robust choice for midsized manufacturing plants, automotive service centers and other facilities with moderate compressed air demands. Like its smaller siblings, it integrates advanced adsorption technologies and an activated carbon polishing stage for oil residue below 5 ppm.
Unique to the SEPREMIUM 10i are service valves that allow for sectional draining, simplifying routine maintenance and reducing downtime. It also features a visual indicator for filter life, helping operators plan element replacement, and an overflow indicator. When your operation needs a balance of throughput and maintainability, the SEPREMIUM 10i delivers dependable performance with intelligent monitoring options.
Share
Commercial benefits:
- Ideal choice for compressor capacities up to 10 m³/min.
- Implementation of NEW high-quality JORC green filtration element
- Effective separation of mineral oil, synthetic oil and stable condensate emulsions
- Includes an Indicator Flashing Light; Optional JORC sensor to connect to your monitoring system also available
- Service valves, offering you draining of the individual towers for routine servicing and cleaning
- Brass hose connectors ensure swift and secure installation
- Exceptional value for money
Technical advantages:
- Maximum compressor capacity 10 m³/min. (350 CFM)
- Visual element life indication
- Lighter and easier replacement of elements
- Sectional draining options during servicing
- Multiple condensate inlets
- Overflow indicator
- Test valve & sample bottle for output testing & measuring the ppm value (indication)
- Operates with all JORC type drains (both timer-controlled and zero air loss)
- Customer specific finishing options available
- Small foot print
| 10 m³/min. (350 CFM) |
| 10 liters |
| 2 |
| 1 |
| G ½" (10 mm hose adapter) |
| G 1" (25 mm hose adapter) |
| Yes |
| <5 ppm |
| PE |
| Black |
| Grey |
| Yes |
| Included |
| Yes |
| Yes |
| On request |
| Medium |
