FLUIDRAIN-COMBO
Electronic timer drain with integrated strainer
The FLUIDRAIN-COMBO Timer Controlled Condensate Drain is a combination of a solenoid valve and an electronic timer designed to automatically remove condensate from compressed air systems.
The FLUIDRAIN-COMBO is designed to remove condensate from compressors, compressed air dryers and receivers up to 16 bar applications.
The FLUIDRAIN-COMBO saves installation time and protects against large particles found in condensate, thanks to the integrated ball valve and strainer. The unit can be shut off from the compressed air system, enabling easy and safe work to be carried out.
Share
Integrated mesh strainer, offering valve and orifice protection from larger particles found in condensate.

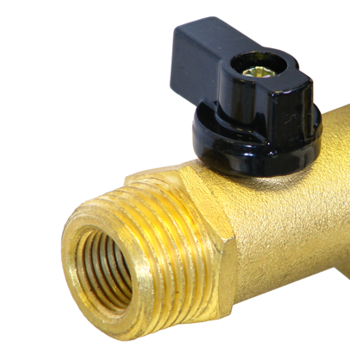

Integrated shut off valve, offering easy shut off of the valve for routine maintenance.

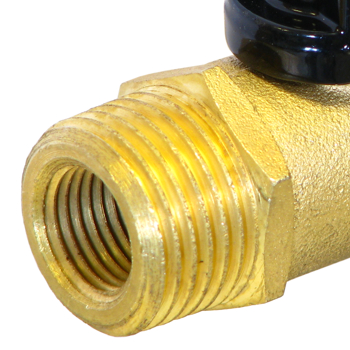

Dual inlet (1/2" and 1/4"), offering you installation flexibility.
- Does not air-lock during operation.
- Installation time saver.
- Any type of compressed air systems and up to 16 bar.
- TEST (micro-switch) feature.
- Private labelling and colour options.
- Accurate time cycles.
- Premium PCB components selected.
|
Any size |
|
0 - 16 bar (higher pressure available, see FLUIDRAIN-HP) |
|
12 - 380 VAC/DC 50/60Hz. (please indicate) |
|
1 - 55 °C |
|
1 - 55 °C |
|
0.5 - 10 seconds / 0.5 - 45 minutes |
|
SMD technology, ensuring consistency in production |
|
Bright LED illumination |
|
Yes |
|
2/2 way, direct acting |
|
4 mm |
|
FPM |
|
1/4" & 1/2" (BSP or NPT) / 1/2" (BSP or NPT) |
|
1 cm |
|
Yes |
|
Brass (Stainless steel available, see FLUIDRAIN) |
|
DIN 43650-A |
|
IP65 (NEMA4) |
DOWNLOADS
Select your desired language and click the download button
SERVICE KITS
Great care is taken to ensure long lasting components are selected and applied in our products.
Learn More
FLUIDRAIN, SEE HOW IT WORKS.
FLUIDRAIN-COMBO INTRODUCTION:
Features
Integrated mesh strainer, offering valve and orifice protection from larger particles found in condensate.
Integrated shut off valve, offering easy shut off of the valve for routine maintenance.
Dual inlet (1/2" and 1/4"), offering you installation flexibility.
- Does not air-lock during operation.
- Installation time saver.
- Any type of compressed air systems and up to 16 bar.
- TEST (micro-switch) feature.
- Private labelling and colour options.
- Accurate time cycles.
- Premium PCB components selected.
Specifications
|
Any size |
|
0 - 16 bar (higher pressure available, see FLUIDRAIN-HP) |
|
12 - 380 VAC/DC 50/60Hz. (please indicate) |
|
1 - 55 °C |
|
1 - 55 °C |
|
0.5 - 10 seconds / 0.5 - 45 minutes |
|
SMD technology, ensuring consistency in production |
|
Bright LED illumination |
|
Yes |
|
2/2 way, direct acting |
|
4 mm |
|
FPM |
|
1/4" & 1/2" (BSP or NPT) / 1/2" (BSP or NPT) |
|
1 cm |
|
Yes |
|
Brass (Stainless steel available, see FLUIDRAIN) |
|
DIN 43650-A |
|
IP65 (NEMA4) |
