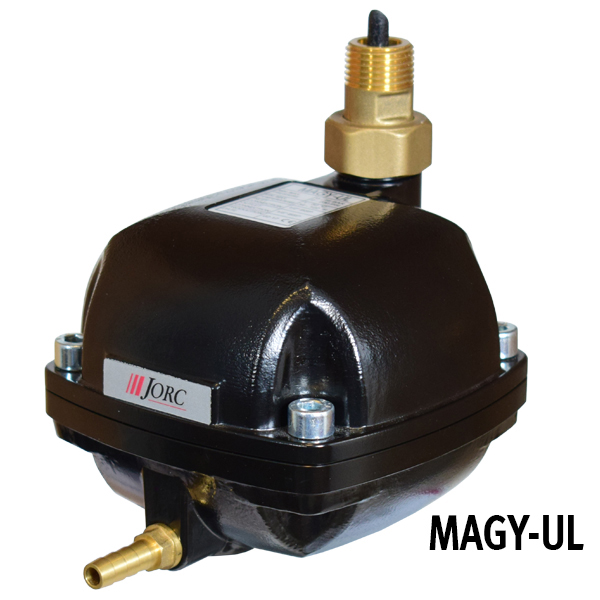

MAGY-UL
Magnetically operated zero air loss drain
The MAGY-UL uses specially selected magnets that operate the 2/2-way direct-acting valve assembly.
The discharge process of the MAGY-UL is automatic and there is no loss of compressed air during the condensate discharge cycle.
The specially selected magnets ensure a high operation consistency.
The MAGY-UL is easy to install and service and can also remain hooked up to the filter while maintenance is being carried out (i.e. the drain does not need to be unthreaded from the filter).
JORC recommends replacing all unreliable filter (float) drains and installing the MAGY-UL. The MAGY-UL features a specially treated robust aluminum housing suitable for oil lubricated and oil-free applications.
The MAGY-UL is also available with a test feature. The test button offers the solution to check your MAGY-UL ensuring nothing is obstructing the orifice. It also allows you to depressurise the drain for those yearly maintenance moments.
NEW! MAGY-UL optionally available with a test button!
Share
- Extremely compact
- Level sensed magnetic technology saves air, energy and money!
- No operating cost once installed
- Service kits available
- Direct acting valve, for a reliable discharge
- Operating pressure 0 to 16 bar
- Robust corrosion resistant aluminium housing finished with an EP coating
- The direct acting valve is serviceable
- Bottom (outlet) can be rotated 360° for installation simplicity
- Also available with a test button
| Unlimited |
| 145 liters condensate per hour at 16 bar |
| 0 - 16 bar (0 - 230 psi) |
| 1 - 50 °C (34 - 122 °F) |
| 1 - 50 °C (34 - 122 °F) |
| IP68 (NEMA6) |
| 1/2″ BSP or NPT |
| 13.7 cm |
| 1/8″ BSP, with brass hose barb adapter |
| 2/2 way, direct acting |
| 2 mm |
| FPM |
| Yes |
| Corrosion resistant aluminium, EP coating |
| Optionally available |
| Standard integrated |
DOWNLOADS
Select your desired language and click the download button
DRAIN HEATER
In very cold temperatures, condensate may run the risk of freezing when it does not continuously flow through the system.
Learn More
BALL VALVE STRAINERS
The FLUIDRAIN and EZ-1 drain valves have an orifice of 4.5 mm (EZ-1 4.0 mm).
Learn More
SERVICE KITS
Great care is taken to ensure long lasting components are selected and applied in our products.
Learn More
MAGY-UL, SEE HOW IT WORKS.
MAGY-UL MAINTENANCE INSTRUCTIONS:
MAGY-UL INTRODUCTION:
Features
- Extremely compact
- Level sensed magnetic technology saves air, energy and money!
- No operating cost once installed
- Service kits available
- Direct acting valve, for a reliable discharge
- Operating pressure 0 to 16 bar
- Robust corrosion resistant aluminium housing finished with an EP coating
- The direct acting valve is serviceable
- Bottom (outlet) can be rotated 360° for installation simplicity
- Also available with a test button
Specifications
| Unlimited |
| 145 liters condensate per hour at 16 bar |
| 0 - 16 bar (0 - 230 psi) |
| 1 - 50 °C (34 - 122 °F) |
| 1 - 50 °C (34 - 122 °F) |
| IP68 (NEMA6) |
| 1/2″ BSP or NPT |
| 13.7 cm |
| 1/8″ BSP, with brass hose barb adapter |
| 2/2 way, direct acting |
| 2 mm |
| FPM |
| Yes |
| Corrosion resistant aluminium, EP coating |
| Optionally available |
| Standard integrated |
