KAPTIV-MD
Electronic zero air loss condensate drain

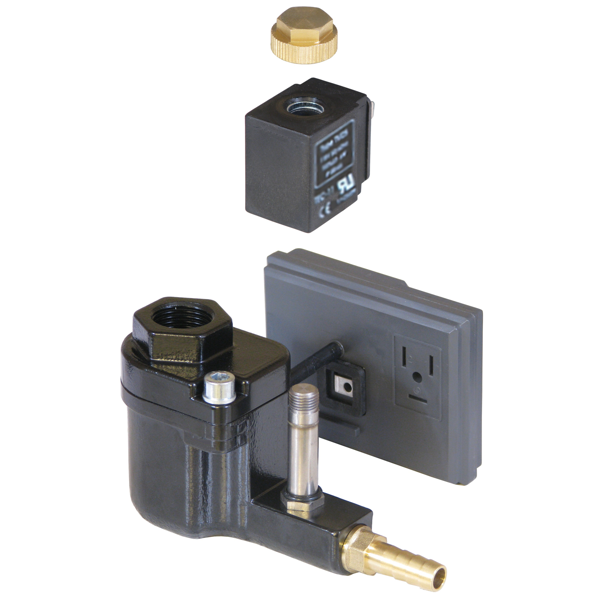

The KAPTIV-MD is a zero air loss drain designed for smaller compressed air applications.
The KAPTIV-MD incorporates the reliable JORC direct acting valve assembly with FPM seals, offering a pressure range of 0 to 16 bar (up to 230 psi).
The solid and robust aluminium housing design has also been incorporated in to this model, following suite with the larger KAPTIV models.
With an inlet connection height of only 74 mm this is an incredibly compact solution with unrivaled installation versatility and reliability.
The weight of the KAPTIV-MD is only 0.5 kg!
The maximum compressor capacity of this drain is 10 m3/min (350 CFM) and typical draining applications include fridge dryers and filters - mainly due to its incredible compact size. The KAPTIV-MD can be applied in oil lubricated as well as oil-free applications.
Share
Integrated mesh filter.
Side inlet adapter optionally available.
- Extremely compact and lightweight unit.
- True zero air loss solution.
- One model covers all compressor capacities up to 10 m³/min.
- No sizing chart required.
- The serviceable valve offers maintenance opportunities.
- Zero air loss during the condensate discharge.
- Easy to install due to its low inlet height.
- External valve position allows for fast and easy maintenance.
- Direct acting valve with FPM seal.
- Robust corrosion resistant aluminium housing.
- Integrated mesh strainer.
- Personal branding opportunities.
|
10 m³/min. (350 CFM) |
|
45 liters condensate per hour at 16 bar |
|
0 - 16 bar (0 - 230 psi) |
|
1 - 50 °C (34 - 122 °F) |
|
1 - 50 °C (34 - 122 °F) |
|
230VAC / 115VAC / 24VAC / 24VDC |
|
IP65 (NEMA4) |
|
DIN 43650-B |
|
1/2″ BSP or NPT |
|
74 mm |
|
Yes, optional |
|
1/4″ BSP, with brass hose barb adapter |
|
2/2 way, direct acting |
|
2 mm |
|
FPM |
|
Yes |
|
Yes |
|
Corrosion resistant aluminium, EP coating |
|
Yes |
|
Yes, LED indication |
