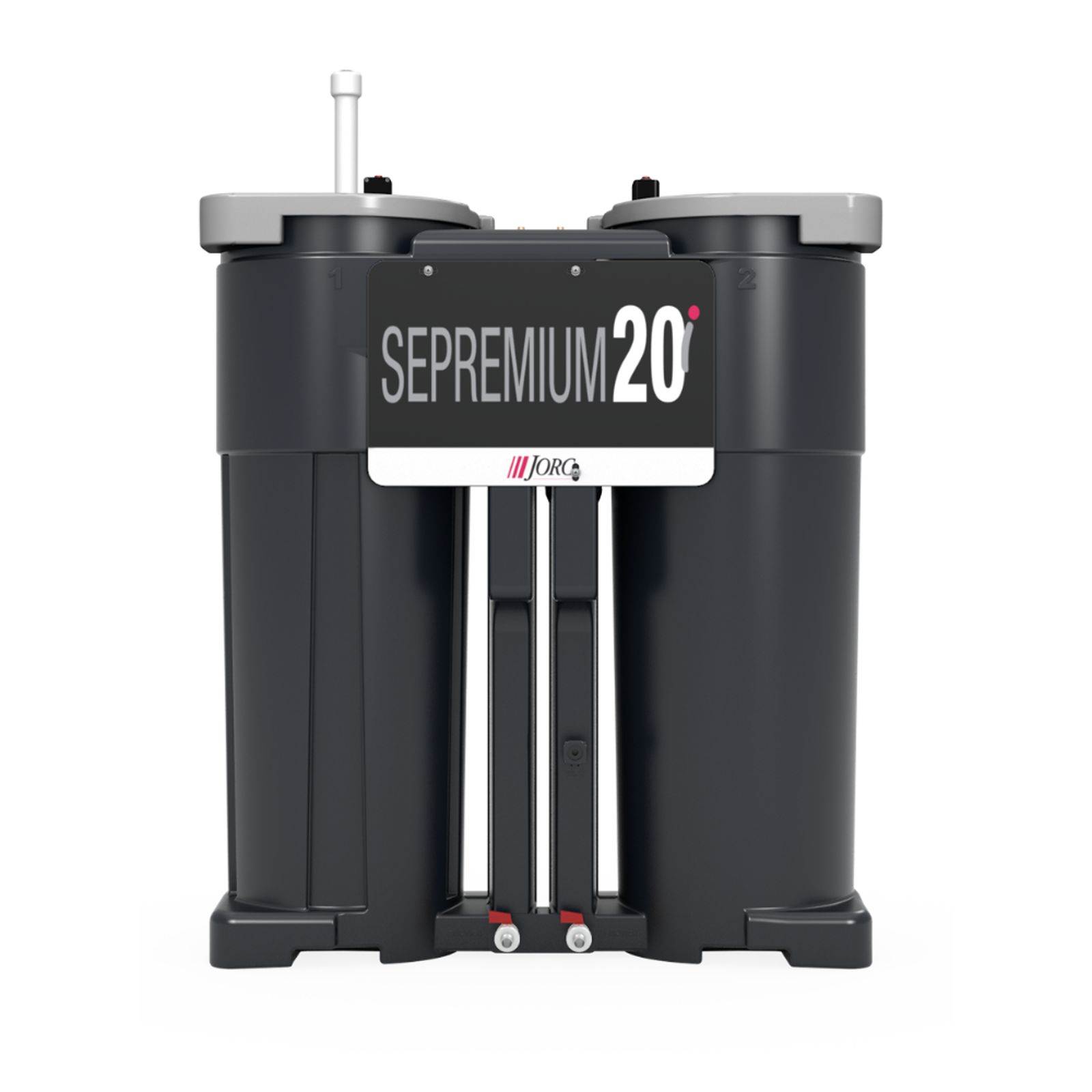

SEPREMIUM20i Oil Water Separator
Built to handle larger flows—up to 20 m³/min —the SEPREMIUM20i is well-suited to busy factories, multishift production lines and other higher demand applications. It retains the same multi-stage filtration process and premium JORC green elements, ensuring compliance with strict environmental standards, ensuring oil residue below 5 ppm.
A flashing overflow indicator and optional sensor connectivity give you real-time insight into separator status, critical in environments where constant uptime is a must. Thanks to its sectional tower draining and sample valve, service interventions are straightforward. If you’re managing a high-volume compressed air system and need a separator that’s both scalable and easy to monitor, the SEPREMIUM20i is a solid pick
Share
Commercial Benefits:
- Ideal choice for compressor capacities up to 20 m³/min.
- Implementation of NEW high-quality JORC green filtration element
- Effective separation of mineral oil, synthetic oil and stable condensate emulsions
- Includes an Indicator Flashing Light; Optional JORC sensor to connect to your monitoring system also available

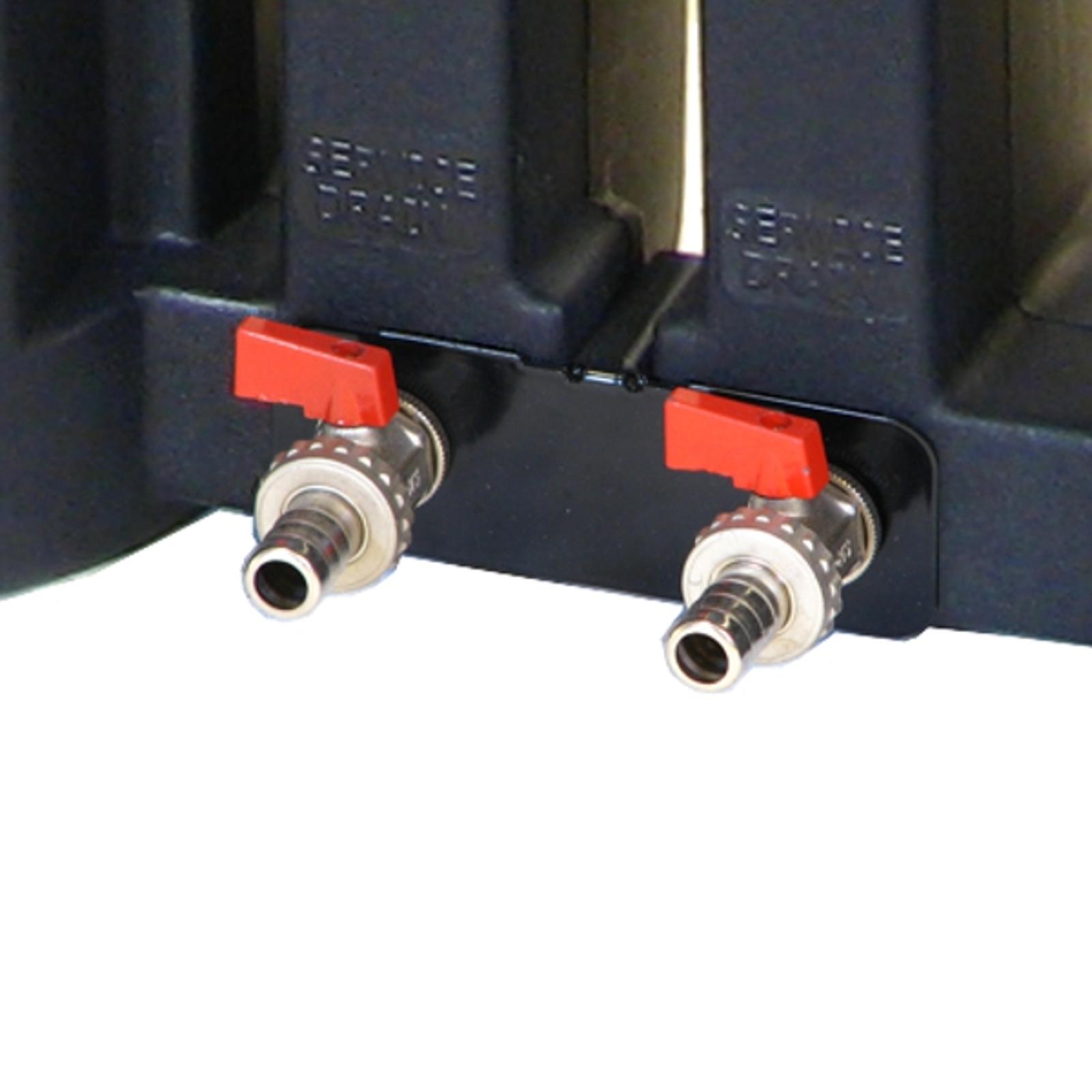

- Service valves, offering you draining of the individual towers for routine servicing and cleaning
- Brass hose connectors ensure swift and secure installation
- Exceptional value for money
Technical Advantages:
- Maximum compressor capacity 20 m³/min.(750 CFM)

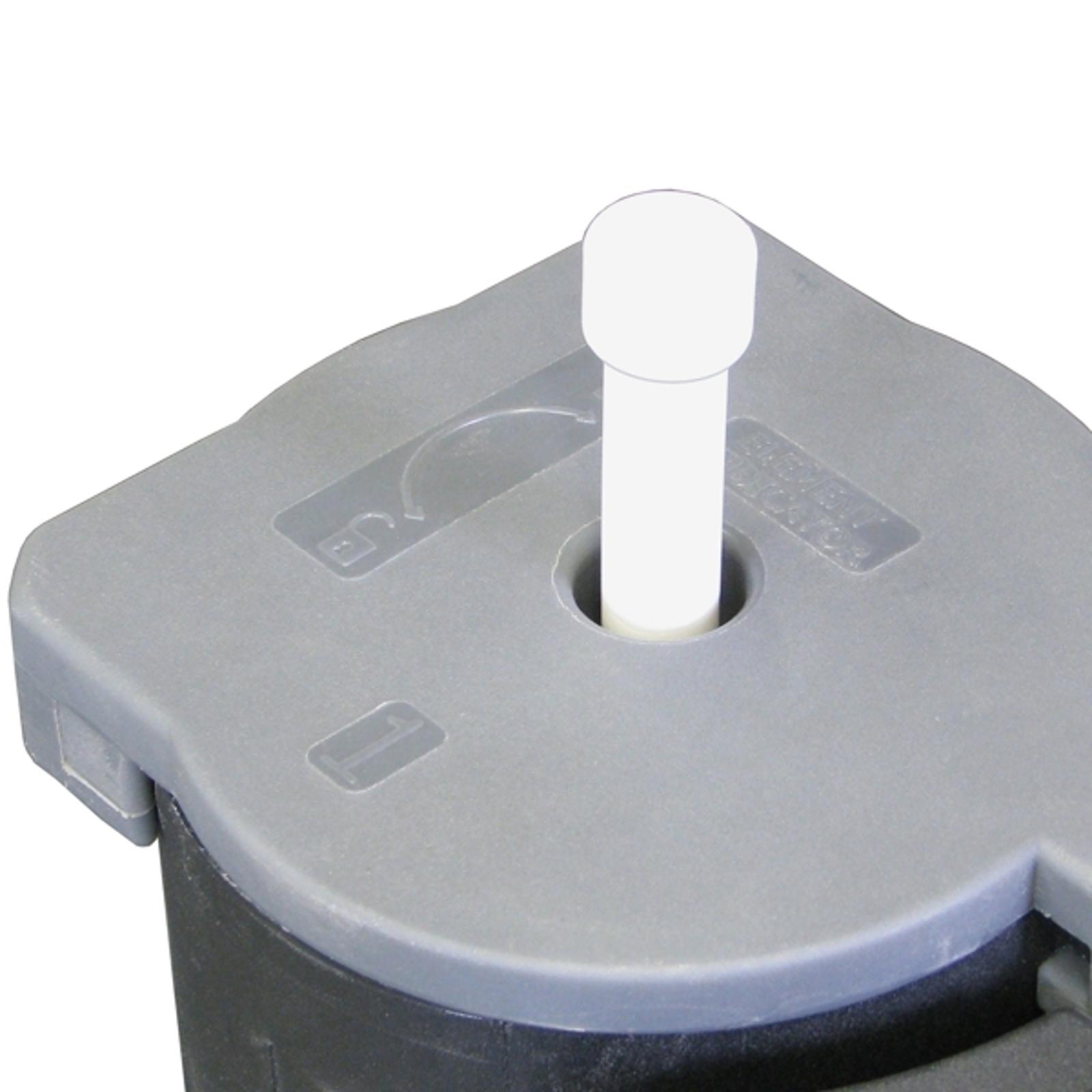

- Visual element life indication
- Lighter and easier replacement of elements
- Sectional draining options during servicing
- Multiple condensate inlets
- Overflow indicator
- Test valve & sample bottle for output testing and measuring the ppm value (indication)
- Operates with all JORC type drains (both timer controlled and zero air loss)
- Customer specific finishing options available
- Small foot print
| 20 m³/min. (750 CFM) |
| 15 liters |
| 2 |
| 1 |
| G ½" (10 mm hose adapter) |
| G 1" (25 mm hose adapter) |
| Yes |
| <5 ppm |
| PE |
| Black |
| Grey |
| Yes |
| Included |
| Yes |
| Yes |
| On request |
| Large |
DISTRIBUTOR
Large compressor systems might require two or more oil/water separators to be installed to match the total compressor capacity of an installation.
Learn More
SERVICE PACKS
The clever lubricant adsorbing elements of the PURO-CT and SEPREMIUM are designed to perform in the widest range of applications.
Learn More
CONDENSATE TESTKIT
JORC offers an in-house laboratory test kit to analyse and determine the succes rate of our oil/water separators prior to sale and/or installation.
Learn More
PLATTO
When oil/water separators are being serviced, it is important that condensate does not contaminate your customer's factory floor or compressor room.
Learn More
Features
Commercial Benefits:
- Ideal choice for compressor capacities up to 20 m³/min.
- Implementation of NEW high-quality JORC green filtration element
- Effective separation of mineral oil, synthetic oil and stable condensate emulsions
- Includes an Indicator Flashing Light; Optional JORC sensor to connect to your monitoring system also available
- Service valves, offering you draining of the individual towers for routine servicing and cleaning
- Brass hose connectors ensure swift and secure installation
- Exceptional value for money
Technical Advantages:
- Maximum compressor capacity 20 m³/min.(750 CFM)
- Visual element life indication
- Lighter and easier replacement of elements
- Sectional draining options during servicing
- Multiple condensate inlets
- Overflow indicator
- Test valve & sample bottle for output testing and measuring the ppm value (indication)
- Operates with all JORC type drains (both timer controlled and zero air loss)
- Customer specific finishing options available
- Small foot print
Specifications
| 20 m³/min. (750 CFM) |
| 15 liters |
| 2 |
| 1 |
| G ½" (10 mm hose adapter) |
| G 1" (25 mm hose adapter) |
| Yes |
| <5 ppm |
| PE |
| Black |
| Grey |
| Yes |
| Included |
| Yes |
| Yes |
| On request |
| Large |
Accessories
DISTRIBUTOR
Large compressor systems might require two or more oil/water separators to be installed to match the total compressor capacity of an installation.
Learn More

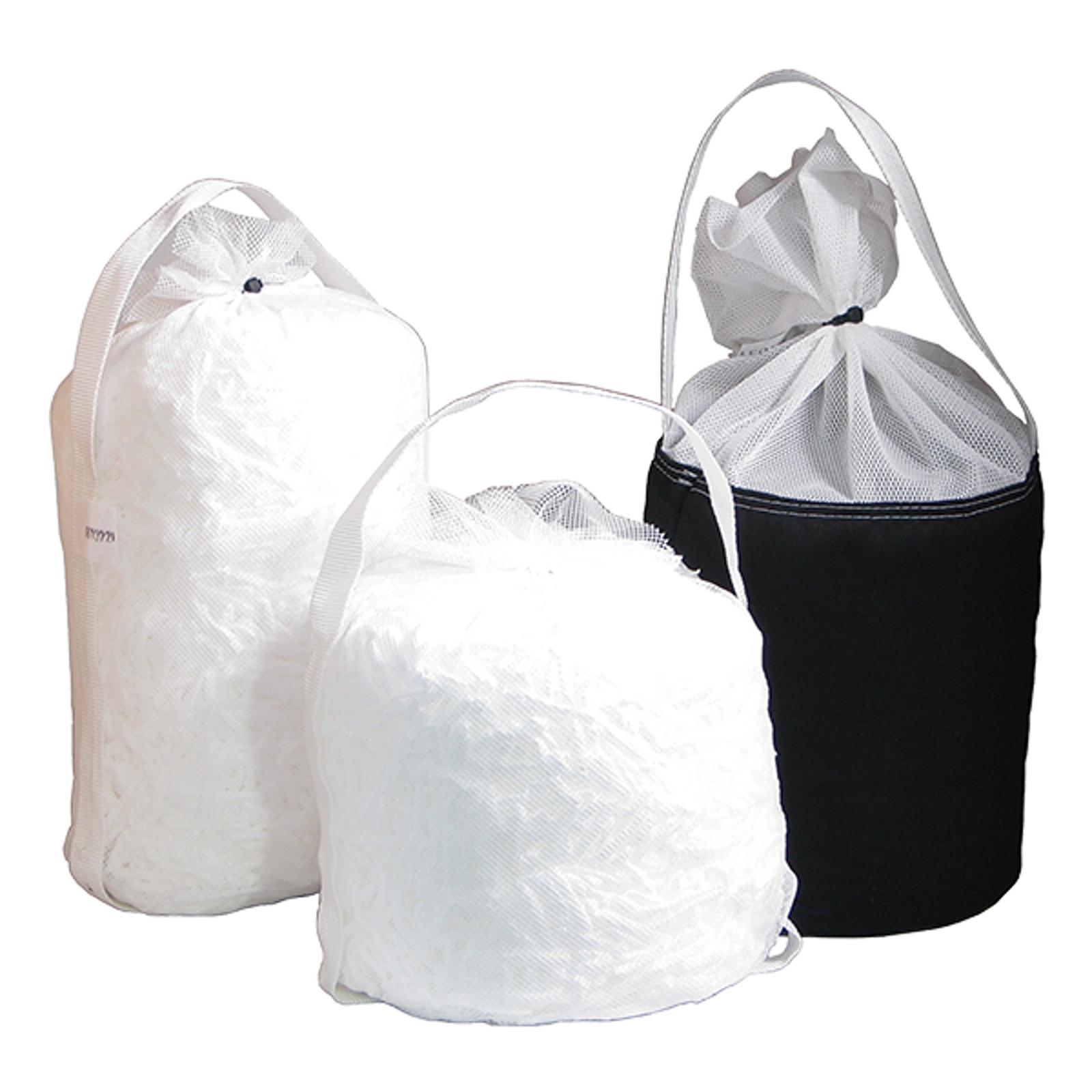

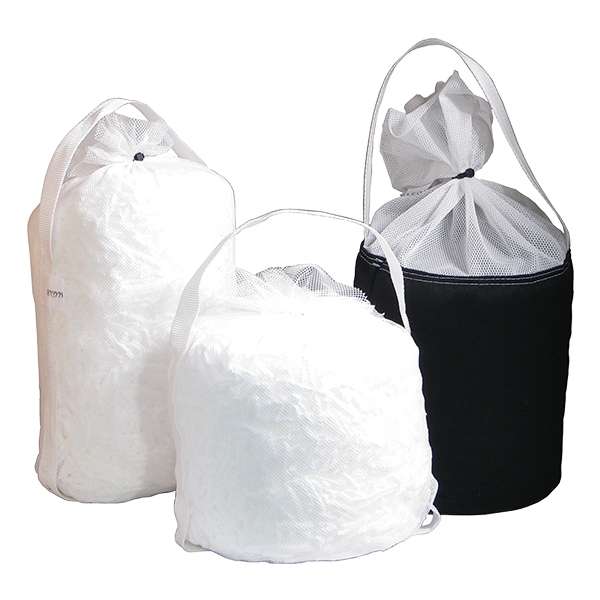

SERVICE PACKS
